ASTM A312 TP347 Stainless Steel Seamless Pipe AISI 347H DIN1.4541 With Mill Test Certificates (MTC) According to EN 10204 3.1

Name: ASTM A312 TP347 Stainless Steel Seamless Pipe AISI 347H DIN1.4541 With Mill Test Certificates (MTC) According to EN 10204 3.1
Brand: JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
SKU: 347h
Price: 3.55 USD
Availability: InStock

Tous les produits

La tôle d'acier inoxydable
(411)

plaques en acier inoxydable
(360)

Bobines d'acier inoxydable
(205)

acier inoxydable plat bar
(85)

plat hastelloy
(62)

barres rondes en acier inoxydable
(411)

Angle de barres en acier inoxydable
(64)

barres rondes en acier
(218)

soudés en acier inoxydable
(142)

Canal u en acier inoxydable
(57)

Tube inoxydable sans soudure en acier
(220)

pipe en acier sans soudure
(107)

Produits de cuivre
(62)

plaque d'acier de bateau
(41)

plaque d'acier d'alliage
(85)

plat d'acier au carbone
(135)

bobines d'acier galvanisés
(159)

Tuyau d'acier galvanisé
(14)

Les Meilleurs Produits

SS 329 Pipe en acier inoxydable duplex 80 Diamètre 3/4 pouces UNS NS32900 Bar creuse

UNS S31254 (254SMO) Tubes sans couture OD: 38,1 mm Épaisseur du tube: 3 mm Longueur 6M

17-7 Ph SUS631 Barre creuse en acier sans soudure avec décapage par recuit

Certificat

Examens de client

c'est le deuxième ordre l achat cette société, qualité est très bon, mêmes que la qualité .we d'europure ira sur le ccooperate avec cette société.

—— Andrew Greg - la Turquie

la feuille d'acier inoxydable de 200 tonnes est arrivée le 10 octobre 2014, la qualité est très bonne., fournissent le temps est très rapide il est très chanceuse nous trouvent cette usine

—— Cardon de Mechile Kilar - Brazial

Nous avons pour coopérer avec cette usine beaucoup d'années, tout va très Well.l comme cette usine !

—— Hilton élégant - la Pologne

C'est notre troisième achat de fois de Mittel, qualité est très des marchandises, nous sont heureux de trouver cette usine fiable

—— Natalya Ugay-Russie

La qualité est très bonne et délai de livraison très rapide, nous voulons faire de longues affaires de termes avec cette société

—— Pongpol Pluemsati-Thaïlande

Je suis en ligne une discussion en ligne

ASTM A312 TP347 Stainless Steel Seamless Pipe AISI 347H DIN1.4541 With Mill Test Certificates (MTC) According to EN 10204 3.1

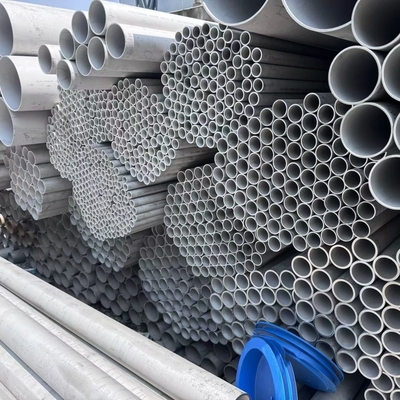

Image Grand : ASTM A312 TP347 Stainless Steel Seamless Pipe AISI 347H DIN1.4541 With Mill Test Certificates (MTC) According to EN 10204 3.1

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	MITTEL
Certification:	SGS ISO MTC
Numéro de modèle:	347h

Conditions de paiement et expédition:

Quantité de commande min:	100 kg
Prix:	3.55-5.45 USD/KG
Détails d'emballage:	Boîte en bois
Délai de livraison:	7 jours après réception du dépôt
Conditions de paiement:	L / C, T / T
Capacité d'approvisionnement:	80000kgs

Contact

ASTM A312 TP347 Stainless Steel Seamless Pipe AISI 347H DIN1.4541 With Mill Test Certificates (MTC) According to EN 10204 3.1

description de

Application:	Construction, décoration, industrie, chaudière, produits chimiques	Standard:	DIN,ASTM,JIS,AISI
Grade d'acier:	347 347h din1.4541	Taper:	Sans couture
Épaisseur:	0,5 ~ 60 mm	Longueur:	3000 mm ~ 6000 mm, demande du client
Forme:	Ronde, carré, rectangulaire.	Diamètre extérieur:	6-762mm
Technique:	À froid	Surface:	Recuit, décapage

ASTM A312 TP347 Stainless Steel Seamless Pipe AISI 347H DIN1.4541 With Mill Test Certificates (MTC) According to EN 10204 3.1

Name	Seamless Steel Pipe
Standard	ASTM, GB, JIS, DIN, EN, AISI
Material Grade	TP304/TP304L /TP316/ TP316L /TP347/ TP347H /TP321/ TP321H /TP310/ TP310S/TP310H
	TP317L/TP317
	S31803/S32205 S32750 S32760 S32304 S32101
Outer Diameter	Seamless Pipe: 6mm-610mm
Thickness	Seamless Pipe: 0.6mm - 60mm
Length	5.0-5.8 MTR or as customers' request
Tolerance	According to the Standard.
Test	UT,ET,HT,RT,ect, and others according to the standard,or as the requests of the customers
Sample	Yes
Certificate	ISO 9001:2008
Marking	Standard, Grade, Size, Length and Heat No.
Packing Details	Plastic bags in bundles, wooden cases or depend on buyer’s requirement
Payment Terms	T/T, D/P at sight, L/C at sight
Delivery Time	Depend on the quantity
Supply Ability	1000 tons per month

General Properties

Alloy 347 (UNS S34700) is columbium stabilized austenitic stainless steel plate with good general corrosion resistance and somewhat better resistance in strong oxidizing conditions than 321 (UNS S32100). It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C). The alloy has good oxidation resistance and creep strength to 1500°F (816°C). It also possesses good low temperature toughness.

Alloy 347H (UNS S3409) stainless steel plate is the higher carbon (0.04 – 0.10) version of the alloy. It was developed for enhanced creep resistance and for higher strength at temperatures above 1000°F (537°C). In most instances, the carbon content of the plate enables dual certification.

Alloy 347 stainless steel plate cannot be hardened by heat treatment, only by cold working. It can be easily welded and processed by standard shop fabrication practices.

Corrosion Resistance

Alloy 347 stainless steel plate exhibits good general corrosion resistance that is comparable to 304. It was developed for use in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C) where un-stabilized alloys such as 304 are subject to intergranular attack. In this temperature range, the overall corrosion resistance of Alloy 347 stainless steel plate is superior to Alloy 321 stainless steel plate. Alloy 347 also performs somewhat better than Alloy 321 in strongly oxidizing environments up to 1500°F (816°C).

The alloy can be used in nitric solutions, most diluted organic acids at moderate temperatures and in pure phosphoric acid at lower temperatures and up to 10% diluted solutions at elevated temperatures. Alloy 347 stainless steel plate resists polythionic acid stress corrosion cracking in hydrocarbon service. It can also be utilized in chloride or fluoride free caustic solutions at moderate temperatures.

Alloy 347 stainless steel plate does not perform well in chloride solutions, even in small concentrations, or in sulfuric acid.

Chemical Analysis

Weight % (all values are maximum unless a range is otherwise indicated)

Element	347	347H
Chromium	17.00 min.-19.00 max.	17.00 min.-19.00 max.
Nickel	9.00 min.-13.00 max.	9.00 min.-13.00 max.
Carbon	0.08	0.04 min.-0.10 max.
Manganese	2.00	2.00
Phosphorus	0.045	0.045
Sulfur	0.03	0.03
Silicon	0.75	0.75
Columbium & Tantalum	10 x (C + N) min.-1.00 max.	8 x (C + N) min.-1.00 max.
Iron	Balance	Balance

Mechanical Properties

Typical Values at 68°F (20°C)

Yield Strength 0.2% Offset		Ultimate Tensile Strength		Elongation in 2 in.	Hardness
psi (min.)	(MPa)	psi (min.)	(MPa)	% (min.)	(max.)
30,000	205	75,000	515	40	201 Brinell

Fabrication Data

Alloy 347 stainless steel plate can be easily welded and processed by standard shop fabrication practices.

Cold Forming

The alloy is quite ductile and forms easily.

Hot Forming

The high sulfur content of Alloy 303 also has a detrimental impact on hot workability. If hot forming is required, once again, 304 should be considered as an alternate selection.

Machining

The cold work hardening rate of 347 stainless steel plate makes it less machinable than 410 stainless steel, but similar to 304. The table below provides relevant machining data.

ASTM A312 TP347 Stainless Steel Seamless Pipe AISI 347H DIN1.4541 With Mill Test Certificates (MTC) According to EN 10204 3.1 2

FAQ

Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.

Q3:How to confirm the Product Quality before placing orders?
A3:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. The third-party will be accepted.

Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.

Q6:What is your delivery time?

A6: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q7. Can you provide sample ?
A7: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
